Introduction #
Setting up a malware analysis lab with FlareVM and REMnux can take hours before you even start analyzing a single binary. As a malware analyst, particularly in incident response scenarios, operational effiency is key. Botched host OS upgrades or other issues can easily destroy your carefully built malware analysis environment, which may prevent you from quickly analysing samples in the hot phase of an incident.
With this in mind, I started seeking ways to take the automated installation scripts of FlareVM and REMnux a step further, and to get up and running from scratch as quickly as possible. After some research, publicly hosted Vagrant boxes seemed to be the best way to host prebuilt VM’s to get up and running as fast as possible.
In this blog post I will provide a more visual guide on how to run the prebuilt Vagrant boxes, and to build the boxes from scratch, should you wish to customize your build.
Prebuilt Vagrant Boxes #

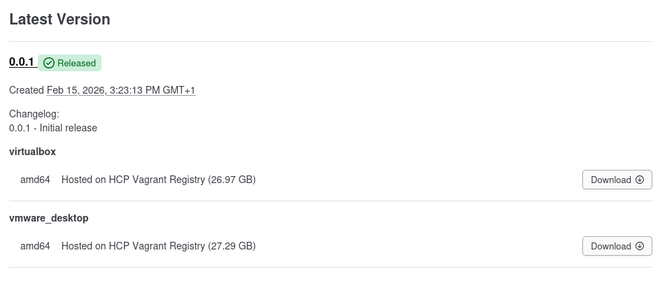

The quickest way to get started is to use the prebuilt Vagrant boxes. This is particularly the case for Windows users, as Ansible cannot really be used on Windows properly to customize the boxes. The Vagrant boxes come with all the installed tools and upgrades out of the box. You can adjust VM settings by editing the corresponding Vagrantfile.
Prerequisites #
In this post, I’m assuming you have installed Vagrant as well as the necessary utilities / plugins, for instance the VMWare Plugin and the Vagrant VMWare Utility.
vagrant plugin install vagrant-vmware-desktop
Let’s start by ensuring the settings are correct in the hypervisor. The FlareVM hardcoded IP is 192.168.56.20, whereas the REMnux hardcoded IP is 192.168.56.10. It is therefore important to configure your hypervisor to have a host-only network with the range 192.168.56.0/24.

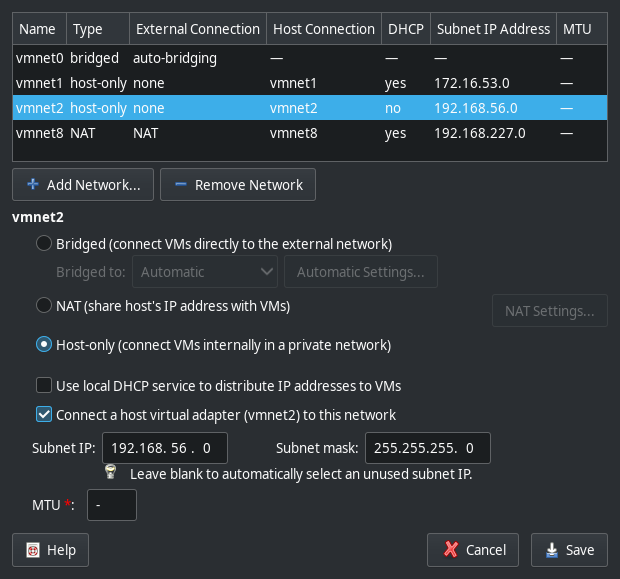

VMware #

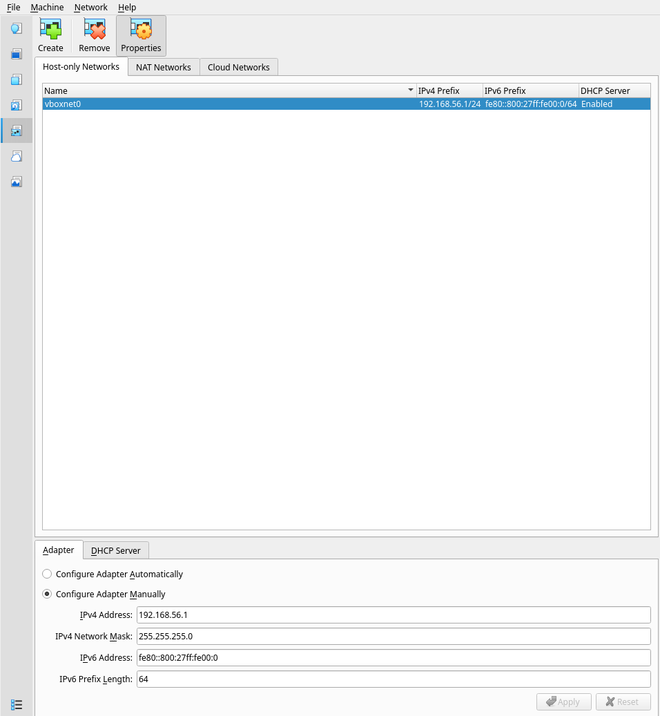

Virtualbox #
Note: you might need to enable “advanced settings” in the home window of Virtualbox to see this option.
Then clone the Git repository and change directory:
git clone git@github.com:stoyky/figment.git
cd figment
In this post I will mainly focus on VMWare Workstation deployment, but great care was taken to make the scripts work for both hypervisors.
REMnux #
Let’s start with REMnux first.
cd vagrant/remnux
Review the Vagrantfile and ensure the settings are to your liking.
Vagrant.configure("2") do |config|
# REMnux
config.vm.define "remnux" do |remnux|
remnux.vm.box = "figment/remnux"
remnux.vm.hostname = "remnux"
remnux.ssh.username = "remnux"
remnux.ssh.password = "malware"
remnux.ssh.insert_key = false
remnux.vm.provider "vmware_desktop" do |vmware|
vmware.vmx["ethernet0.present"] = "TRUE"
vmware.vmx["ethernet0.connectionType"] = "nat"
vmware.vmx["ethernet0.virtualDev"] = "e1000"
vmware.vmx["ethernet0.connect"] = "connected"
vmware.vmx["ethernet0.startConnected"] = "TRUE"
vmware.vmx["ethernet0.displayName"] = "nat"
vmware.vmx["ethernet1.present"] = "TRUE"
vmware.vmx["ethernet1.connectionType"] = "hostonly"
vmware.vmx["ethernet1.virtualDev"] = "e1000"
vmware.vmx["ethernet1.connect"] = "connected"
vmware.vmx["ethernet1.startConnected"] = "TRUE"
vmware.vmx["ethernet1.displayName"] = "hostonly"
vmware.memory = "2048"
vmware.gui = true
end
remnux.vm.provider "virtualbox" do |virtualbox|
virtualbox.customize ["modifyvm", :id, "--nic1", "nat"]
virtualbox.customize ["modifyvm", :id, "--macaddress1", "080027000001"]
virtualbox.customize ["modifyvm", :id, "--nic2", "hostonly"]
virtualbox.customize ["modifyvm", :id, "--macaddress2", "080027000002"]
virtualbox.customize ["modifyvm", :id, "--hostonlyadapter2", "vboxnet0"]
virtualbox.customize ["modifyvm", :id, "--accelerate3d", "on"]
virtualbox.customize ["modifyvm", :id, "--vram", "128"]
virtualbox.memory = "2048"
virtualbox.gui = true
end
end
end

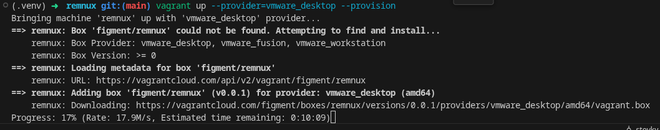

If the settings are correct, you are ready to run Vagrant up. This will download the Box and run it in your chosen hypervisor.
vagrant up --provider=vmware_desktop --provision

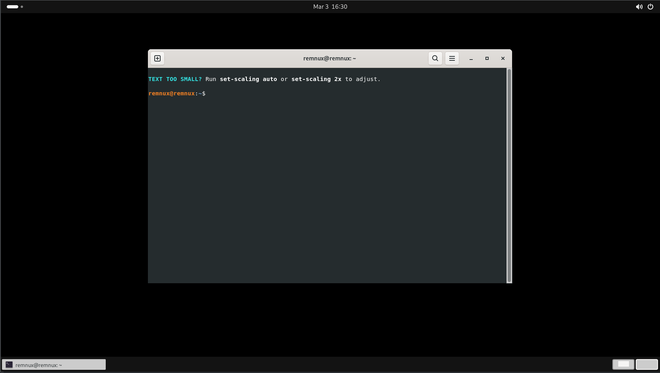

If everything went well, REMnux will pop up in your hypervisor:

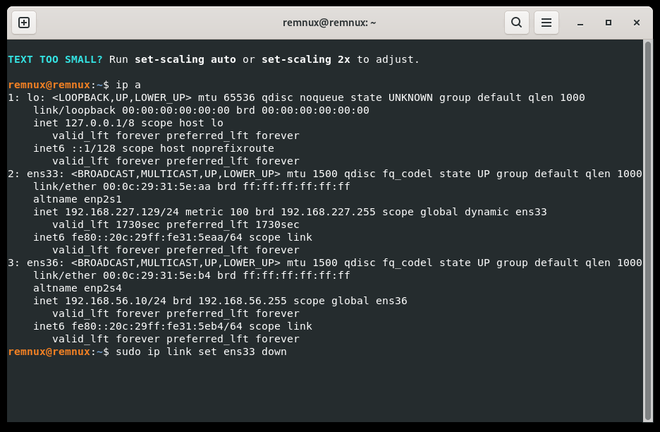

Before continuing, let’s ensure the NAT adapter is disabled. Open up a console and enter:
ip a
Disable the interface with the IP other than 192.168.56.10, in this case ens33.
sudo ip link set ens33 down
And run ip a again to ensure only the interface with IP 192.168.56.10 has state UP.

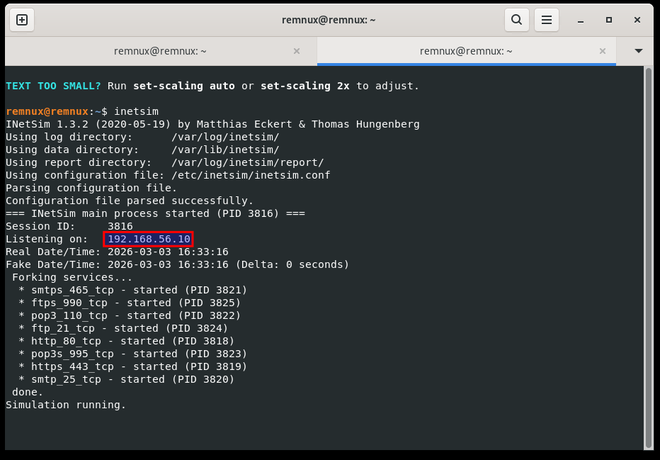

Now open a terminal window and run inetsim. Ensure it is listening on 192.168.56.10:

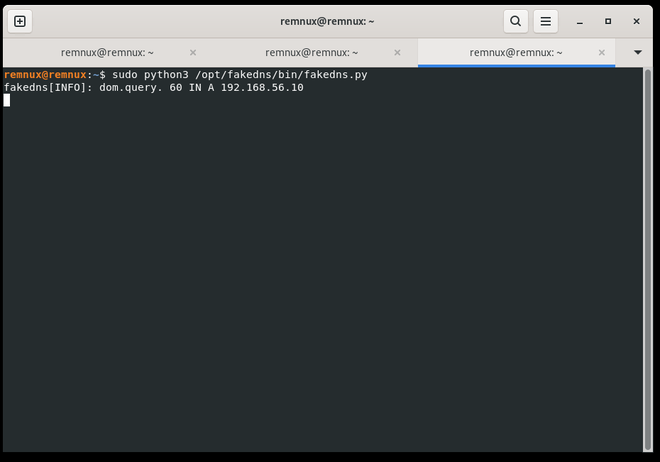

Then run FakeDNS and you should be good to go:
sudo python3 /opt/fakedns/bin/fakedns.py
We are now ready to spin up FlareVM and test host-only connectivity!
FlareVM #
First cd into the vagrant/flarevm subfolder:
cd vagrant/flarevm
Please review the Vagrantfile and make any configuration changes you need. Please note the strict network settings and hardcoded MAC addresses. This is necessary to have consistent builds, so that the network interfaces are preconfigured with the right default gateway and DNS to point to the REMnux machine.
Vagrant.configure("2") do |config|
# FLARE VM
config.vm.define "flarevm" do |flarevm|
flarevm.vm.box = "figment/flarevm-win10"
flarevm.vm.hostname = "flarevm"
flarevm.vm.guest = :windows
flarevm.ssh.username = "admin"
flarevm.ssh.password = "password"
flarevm.ssh.insert_key = false
flarevm.vm.synced_folder '.', '/vagrant', disabled: true
flarevm.vm.provider "vmware_desktop" do |vmware|
vmware.vmx["ethernet0.present"] = "TRUE"
vmware.vmx["ethernet0.connectionType"] = "nat"
vmware.vmx["ethernet0.virtualDev"] = "e1000"
vmware.vmx["ethernet0.connect"] = "connected"
vmware.vmx["ethernet0.startConnected"] = "TRUE"
vmware.vmx["ethernet0.displayName"] = "nat"
vmware.vmx["ethernet0.addressType"] = "static"
vmware.vmx["ethernet0.address"] = "00:0c:29:00:00:01"
vmware.vmx["ethernet0.pciSlotNumber"] = "33"
vmware.vmx["ethernet1.present"] = "TRUE"
vmware.vmx["ethernet1.connectionType"] = "hostonly"
vmware.vmx["ethernet1.virtualDev"] = "e1000"
vmware.vmx["ethernet1.connect"] = "connected"
vmware.vmx["ethernet1.startConnected"] = "TRUE"
vmware.vmx["ethernet1.displayName"] = "hostonly"
vmware.vmx["ethernet1.addressType"] = "static"
vmware.vmx["ethernet1.address"] = "00:0c:29:00:00:02"
vmware.vmx["ethernet1.pciSlotNumber"] = "36" # (Windows 11) change to 32 to avoid hostonly NIC issues
vmware.memory = "4096"
vmware.gui = true
end
flarevm.vm.provider "virtualbox" do |virtualbox|
virtualbox.customize ["modifyvm", :id, "--nic1", "nat"]
virtualbox.customize ["modifyvm", :id, "--macaddress1", "080027000001"]
virtualbox.customize ["modifyvm", :id, "--nic2", "hostonly"]
virtualbox.customize ["modifyvm", :id, "--macaddress2", "080027000002"]
virtualbox.customize ["modifyvm", :id, "--hostonlyadapter2", "vboxnet0"]
virtualbox.customize ["modifyvm", :id, "--accelerate3d", "on"]
virtualbox.customize ["modifyvm", :id, "--vram", "128"]
virtualbox.memory = "4096"
virtualbox.gui = true
end
end
end
After everything is configured correctly, spin up the box using
vagrant up --provider=vmware_desktop --provision

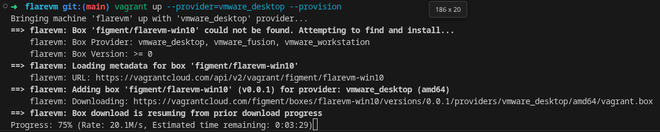

Vagrant should automatically download the box and spin it up in your hypervisor.

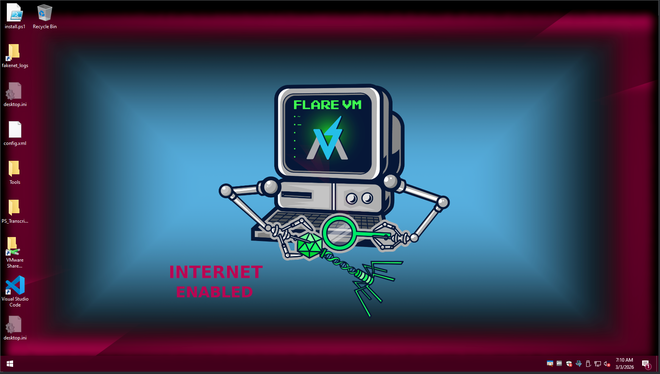

And after finishing your download, you will presented with a fully installed FlareVM 😎:
(Virtualbox) Note: you may get an error stating that “vboxnet0” cannot be found. You can just click “Change network settings” and then OK. The NAT and host-only adapter should then remain configured correctly for host-only networking.
Network Configuration #
Now to ensure you can connect to the REMnux machine, let’s disable the NAT adapter.
Windows 10 #

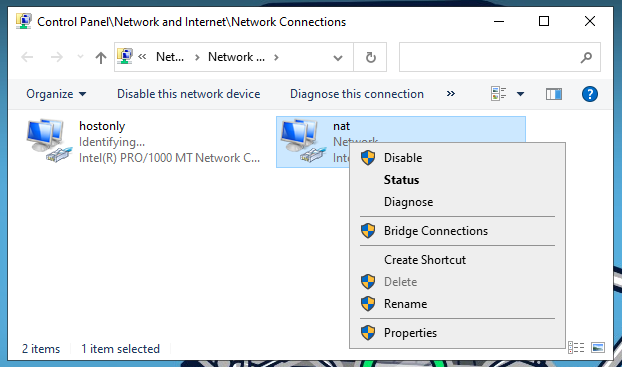

Go to Ethernet Settings -> Change Adapter Options and disable the “nat” adapter:

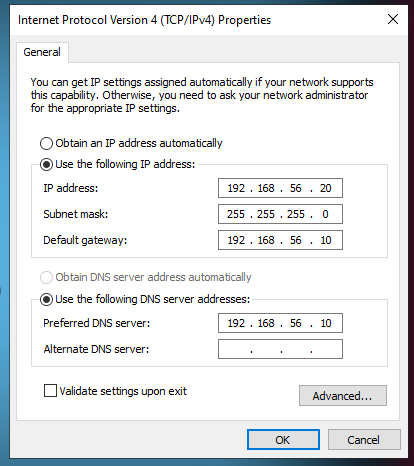

Right-click the “hostonly” -> IPv4 settings and ensure the DNS server and gateway are correctly set (these should be preconfigured):
Windows 11 #

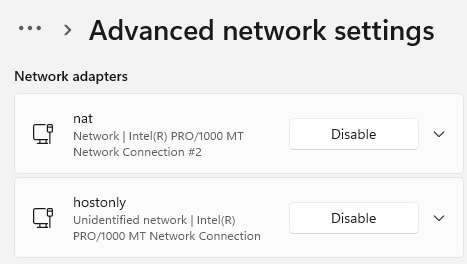

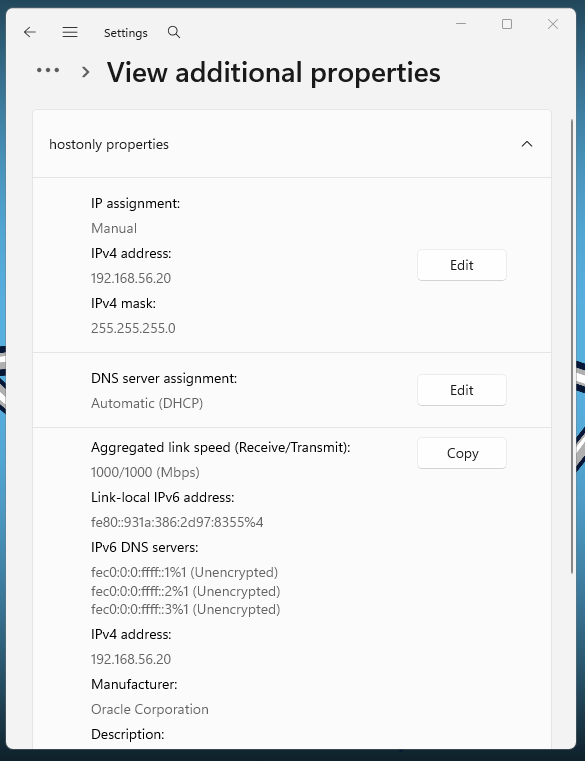

Go to “Manage Network Adapters settings” and disable the “nat” adapter. You can verify the DNS server and gateway settings by expanding the adapter and clicking “View additional info”.
Testing Host-only Connectivity #

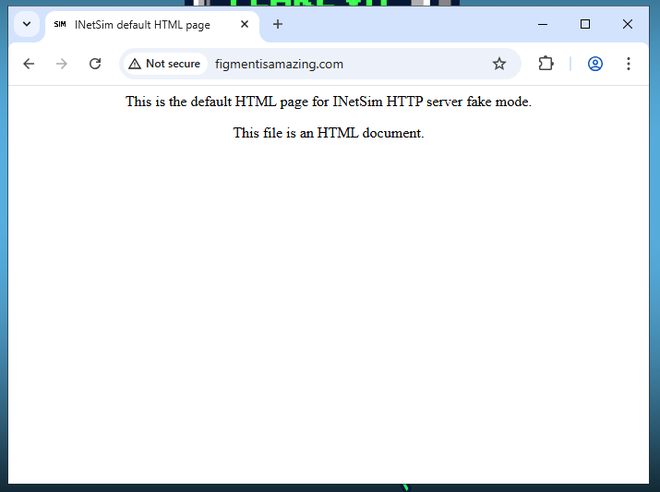

Now go browse to a random testing website in Google Chrome and you will see the default INetSim page:

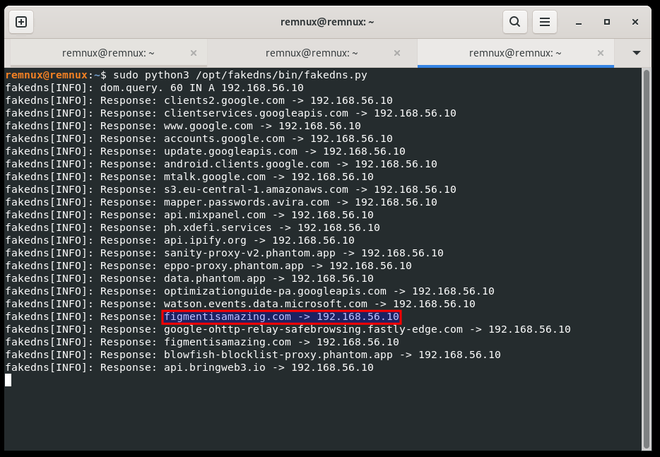

Head over to REMnux and see that the network traffic is intercepted. Great succes!
Now let’s turn to the Packer + Ansible templates to see how we can customize the boxes.
Using the Packer + Ansible Templates #
If you want to customize the boxes, choose the tools you wish to install, or make any particular adjustments, use the Packer templates. I will mainly focus on building the FlareVM box, but the principles are exactly the same for REMnux.
The Packer templates are split into the configuration variables (flarevm.pkrvars.hcl) and the packer build template itself (flarevm.pkr.hcl) that makes use of these variables. I will omit the flarevm.pkr.hcl configuration for brevity.
Consider the flarevm.pkrvars.hcl. The top configuration block pertains mostly to general VM settings. These have been configured with the minimum requirements in mind. It is important to set the iso_sha256 value of the ISO file correctly in the config, and to point iso_url to the Windows ISO file.
# VM Configuration
iso_sha256 = "SHA256:b56b911bf18a2ceaeb3904d87e7c770bdf92d3099599d61ac2497b91bf190b11"
iso_url = "assets/flarevm/Win11_24H2_English_x64.iso"
user = "admin"
password = "password"
cpus = 2
memory = 4096
vm_name = "flarevm"
disk_size = 60000
# Network Configuration
hostonly_ip = "192.168.56.20"
default_gateway = "192.168.56.10"
dns_ip = "192.168.56.10"
ethernet0_pcislotnumber = "33"
ethernet1_pcislotnumber = "36"
# VMWare valid MAC
mac_nat_vmware = "00:0c:29:00:00:01"
mac_hostonly_vmware = "00:0c:29:00:00:02"
# Virtualbox valid MAC
mac_nat_virtualbox = "080027000001"
mac_hostonly_virtualbox = "080027000002"
# FlareVM Installer Configuration
install_args = "-password password -noWait -noChecks -noGui -noReboots -customConfig .\\custom-config.xml"
export_vagrant = true
You will need to download the Windows ISO beforehand, for instance from the sources below, so Packer can use them to build and provision the VMs, and the template expects the ISO to be placed in the assets/flarevm/ folder.
https://www.microsoft.com/en-us/software-download/windows10ISO
https://archive.org/details/windows-11-24h2-iso_202501
You may change the user and password variables, but be aware that you then need to change the autounattend file in packer/flarevm/autounattend/autounattend.xml as well, so that the Windows credentials are aligned correctly.
The other configuration settings speak for themselves. They are intentionally strict so the host-only configuration is mostly preconfigured to work well.
SSH is enabled on the VM through a FirstLogon script in the packer/flarevm/autounattend/autounattend.xml. The enable-ssh.ps1 script can be found in packer/flarevm/scripts/enable-ssh.ps1 and is attached as a floppy disk image on drive letter A: for use during installation. The autounattend file also ensures that Windows installs fully unattended.
<FirstLogonCommands>
<SynchronousCommand wcm:action="add">
<Order>1</Order>
<CommandLine>powershell.exe -WindowStyle "Normal" -ExecutionPolicy "Unrestricted" -NoProfile -File "C:\Windows\Setup\Scripts\FirstLogon.ps1"</CommandLine>
</SynchronousCommand>
<SynchronousCommand wcm:action="add">
<Order>2</Order>
<CommandLine>powershell.exe -WindowStyle "Normal" -ExecutionPolicy "Unrestricted" -NoProfile -File "a:\enable-ssh.ps1"</CommandLine>
</SynchronousCommand>
</FirstLogonCommands>
The Ansible playbooks can be found in ansible/roles/flarevm/tasks/main.yml (shortened for brevity). These tasks are used to provision the VM after initial configuration, for instance to install FlareVM tools and guest additions.
...
- name: Create Flare installer task
community.windows.win_scheduled_task:
name: FlareInstallerTask
actions:
- path: powershell.exe
arguments: "-NoProfile -ExecutionPolicy Bypass -Command \"& { cd 'C:\\Users\\{{ user }}\\Desktop'; .\\install.ps1 {{ install_args }} }\""
working_directory: "C:\\Users\\{{ user }}\\Desktop"
triggers:
- type: registration
username: '{{ user }}'
password: password
logon_type: interactive_token
run_level: highest
state: present
- name: Run the Flare installer task
win_command: schtasks /run /tn FlareInstallerTask
...
To choose the tools you want to install in FlareVM, please adjust the custom-config.xml file in ansible/roles/flarevm/files/custom-config.xml:
...
<packages>
<package name="internet_detector.vm"/>
<package name="010editor.vm"/>
<package name="7zip.vm"/>
<package name="advanced-installer.vm"/>
<package name="angr.vm"/>
<package name="apimonitor.vm"/>
...
These are the most relevant parts of the Packer template and build process. All that is left now is to run it. To make this as easy as possible, I wrapped the commands in the Makefile in the top-level directory of the figment folder.
Assuming you start from the top-level of the figment directory, the following steps can be taken to build the VMs. First create a venv and install Python requirements (i.e. Ansible).
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
Then run
make clean
make flarevm-vmware

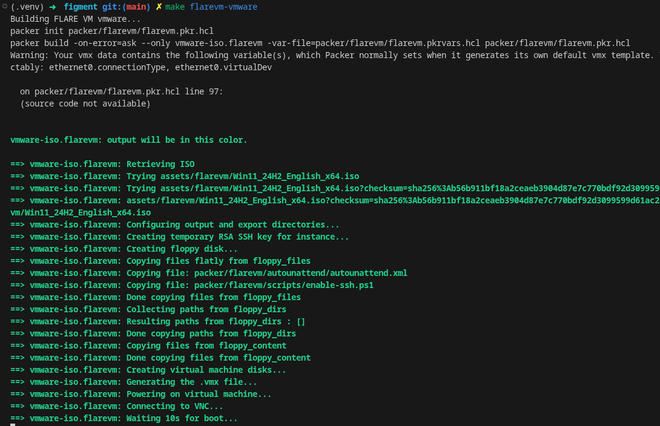

If all goes well, Packer should start building the project, placing temporary VM files in temp/.
When the SSH enable Powershell script has been run, Packer should be able to connect over SSH and start provisioning the image using Ansible:

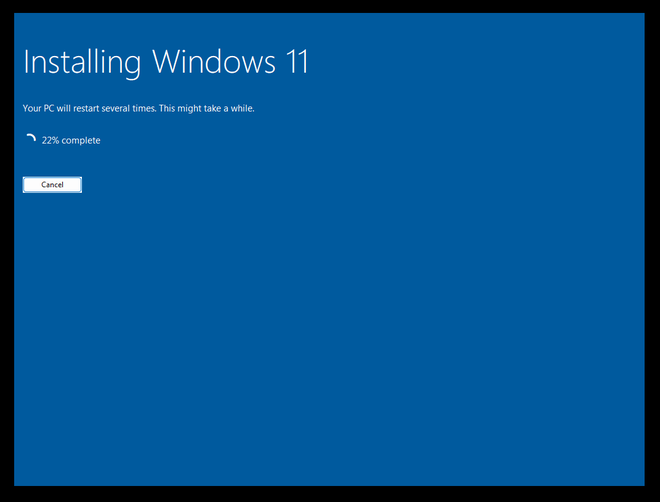

Soon enough, your hypervisor should pop up to install Windows unattended:

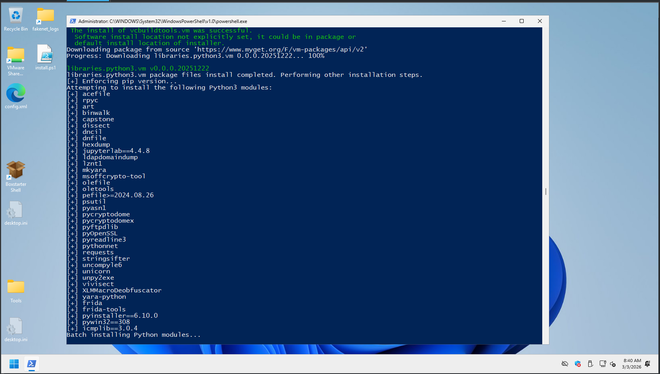

And when the FlareVM installer has been copied over and is executed, you can keep track of the installation process:

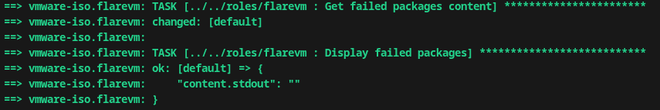

When the installation has finished, Ansible will automatically reboot the machine. You can review which packages failed to install in the console output.
Finally, the machine will be gracefully halted by Packer and the Vagrant post-processor will take over, to produce the final Vagrant boxes. These boxes will be placed in the boxes/ subfolder, provided you set export_vagrant to true in the Packer variables file.
Conclusion #
Thank you for sticking with me until the end! I really hope the Vagrant boxes are useful to you and save you some valuable analyis time. Life is too short to be spent on setting up lab environments! Please head on over to the Github repo and accelerate your malware analysis workflow today!
